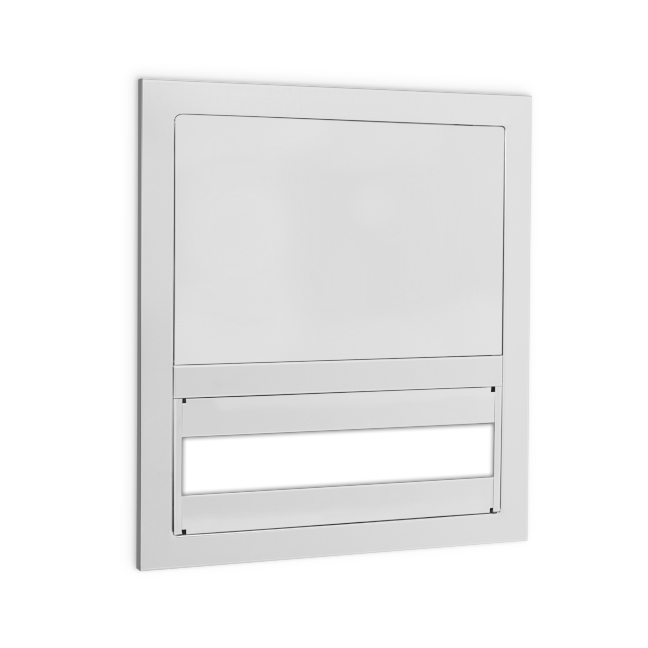

U674
Product Features
Fabricated of #22 gauge stainless steel with a #4 satin finish
Holds 300 c-fold or 400 multifold towels
Towel dispenser is vanity mounted
Product Specs
Mechanism Guide / Body: Fabricated of #22 gauge stainless steel that controls paper dispensing by means of 2 spring loaded dispensing doors and actuating springs.
Door: Assembly is fabricated of #22 gauge stainless steel with a #4 satin finish on all exposed surfaces. Push panel door will return to closed position by means of a return spring loaded mechanism.
Flange: Fabricated of #22 gauge stainless steel with a #4 satin finish with 1/4" returns.
Overall Size: 12 3/4"W x 14 1/4"L x 11 1/2"D
323mm x 361mm x 292mm
Counter Top Opening: 11"W x 12 1/2"L
279mm x 318mm
Capacity: 300 c-fold or 400 multifold towels
Note: Waste receptacle must be purchased separately.
Installation Instruction
Coordinate installation with architect and contractor before providing a cut out in vanity to avoid interference with pipes. Provide cut out 11"W x 12 1/2"L. Install unit in opening and secure at four (4) points with proper fasteners (fasteners not prov
