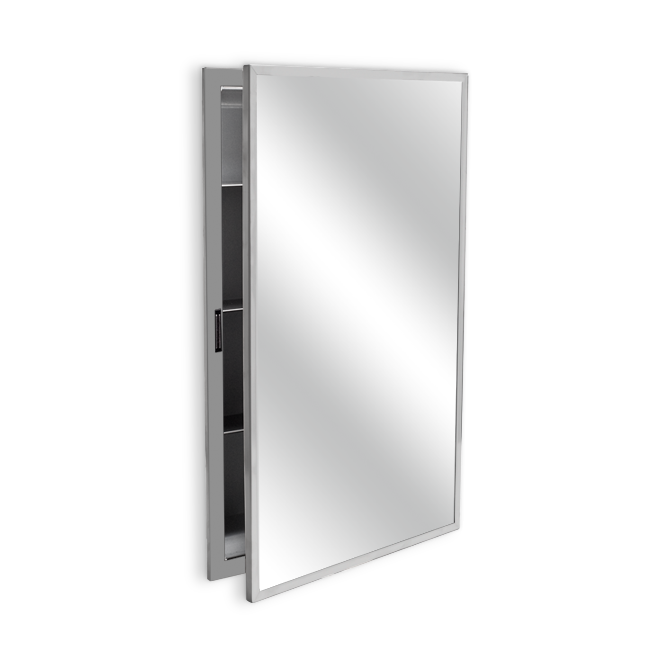

U720 Series
Product Features
Fabricated of #22 gauge stainless steel with a #4 satin finish
Shelves are adjustable for easy storage
Mirror comes with a 15 year warranty against silver spoilage
Uni-door construction available see model U7204
Product Specs
Cabinet Body: Fabricated of #22 ga stainless steel formed for rigidity. Embossed louvers in body allow shelving to be adjustable. Flange surrounds cabinet body that has 1/4” returns to wall. (No miters or welds)
Cabinet Back: Stainless steel secured to cabinet body with multiple welds to cabinet body.
Mirror Door: 1/4” thick float plate glass, silver coated and sealed with a uniform coating of electrolytic copper plating. Mirror is guaranteed against silver spoilage for a period of 15 years. Non-absorbent filler behind mirror acts as a shock absorber.
Channel Frame: #22 ga stainless steel #4 satin finish.
Adjustable Shelving: Two (2) #22 ga stainless steel with #4 satin
Catch: Heavy duty magnetic catch.
Hinges: Full length, heavy duty stainless steel piano type
Collars: #22 ga stainless steel with #4 satin, one piece construction, finished to match cabinet body.
Overall Size: 16”W x 22”H x 4 7/8”D
406mm x 558mm x 124mm
Wall Opening: 14”W x 20”H x 4”D
355mm x 508mm x 102mm
U720-1622-S2: 2” Semi-Recessing collar, 2” wall opening
U720-1622-SM: Fully surface mounted collar
Installation Instruction
Coordinate installation with architect and contractor. Provide a wall opening 13 3/4"W x 20"H. Depth will depend on style mounting. Insert cabinet into opening making sure cabinet is level and door will remain open until you manually close it. Secure cabi
