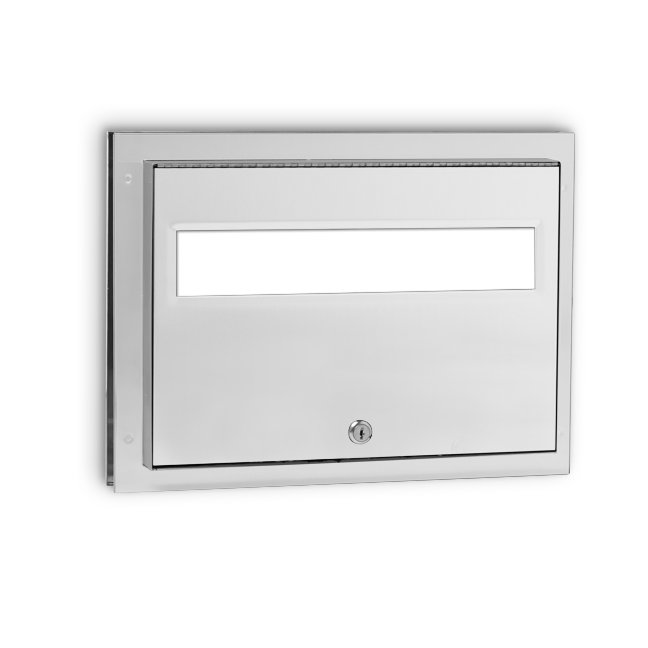

U852
Product Features
Fabricated of #22 gauge stainless steel with a #4 satin finish
Holds 500 seat covers
Seat cover dispenser is partition mounted
Product Specs
Body: Fabricated of #22 gauge stainless steel with a #4 satin finish on all exposed surfaces.
Flange: Fabricated of #22 gauge stainless steel with 1/4" returns without any exposed miters or welds. One flange is welded the other is adjustable.
Door: Fabricated of #22 gauge stainless steel with a #4 satin finish. Seat cover dispensing area is deburred and polished to avoid tearing of product. One side of unit can be opened for servicing.
Hinge: Full length stainless steel piano type hinge.
Lock: Pin tumbler, commercial quality keyed like all other AJW accessories.
Overall Size: 17 1/2"W x 12 3/4"H x 4 1/4"D
445mm x 337mm x 108mm
Partition Opening: 15 3/4"W x 11 1/4"H
400mm x 324mm
Will fit partitions 1/2" - 1 1/4"
Capacity: 500 seat covers per side
Installation Instruction
Provide required wall opening at desired or specified location. Coordinate installation with contractor or architect. Unlock cabinet, remove adjustable flange and place unit in wall opening. Secure fixed flange to wall surface with proper fasteners. Repea
